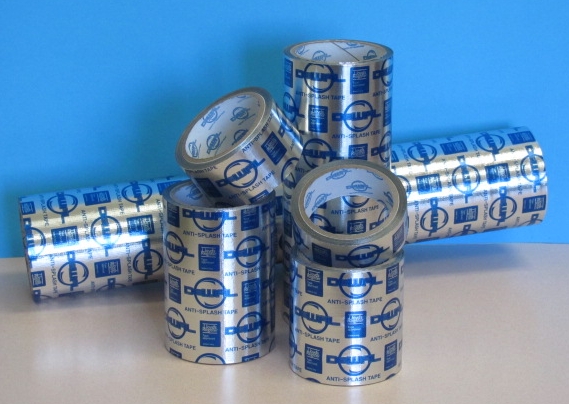

MAREFLEX ANTI-SPLASH TAPE - MF03
SOLAS TAPES DESIGNED FOR MARINE APPLICATION

500mm x 10mtr

Advanced and economic tape helping to control oil spraying and leakages in accordance with
the latest IMO SOLAS Consolidated Edition 2009, Chapter II-2 / Regulation 4, item 2.2.5.3

APPLICATIONS:

Fuel oil injection pipes, fuel oil service pipes,
Fuel oil valve cooling oil pipes attached to diesel engines
Lube oil service pipes and hydraulic oil pipes attached to diesel engines
Flammable oil pipes
Flammable oil pump and strainer
Fuel oil heater

THE PRECEDING AREAS OF FIRE RISK SHOULD BE
PROTECTED FROM THE FOLLOWING SOURCES OF IGNITION:

• Exhaust gas pipe
• Steam pipe
• Turbo charger
• Electrical equipment
• Boiler, thermal oil heater, incinerator

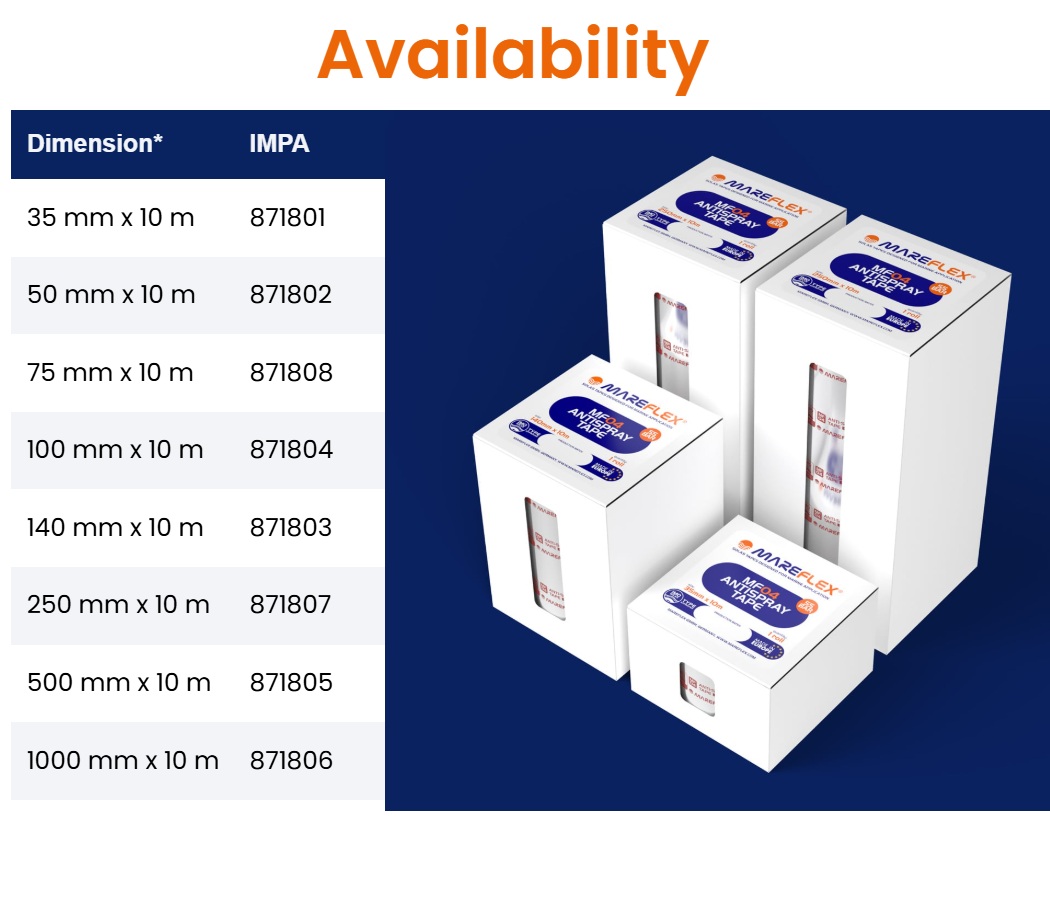

DIMENSIONS:

IMPA Code
871801 35mm x 10mtr p/n 11871801
871802 50mm x 10mtr p/n 11871802
871804 100mm x 10mtr p/n 11871804
871803 140mm x 10mtr p/n 11871803
871807 250mm x 10mtr p/n 11871807
871805 500mm x 10mtr p/n 11871805
871808 75mm x 10mtr p/n 11871808

HS code: 39199090
COO: Germany
