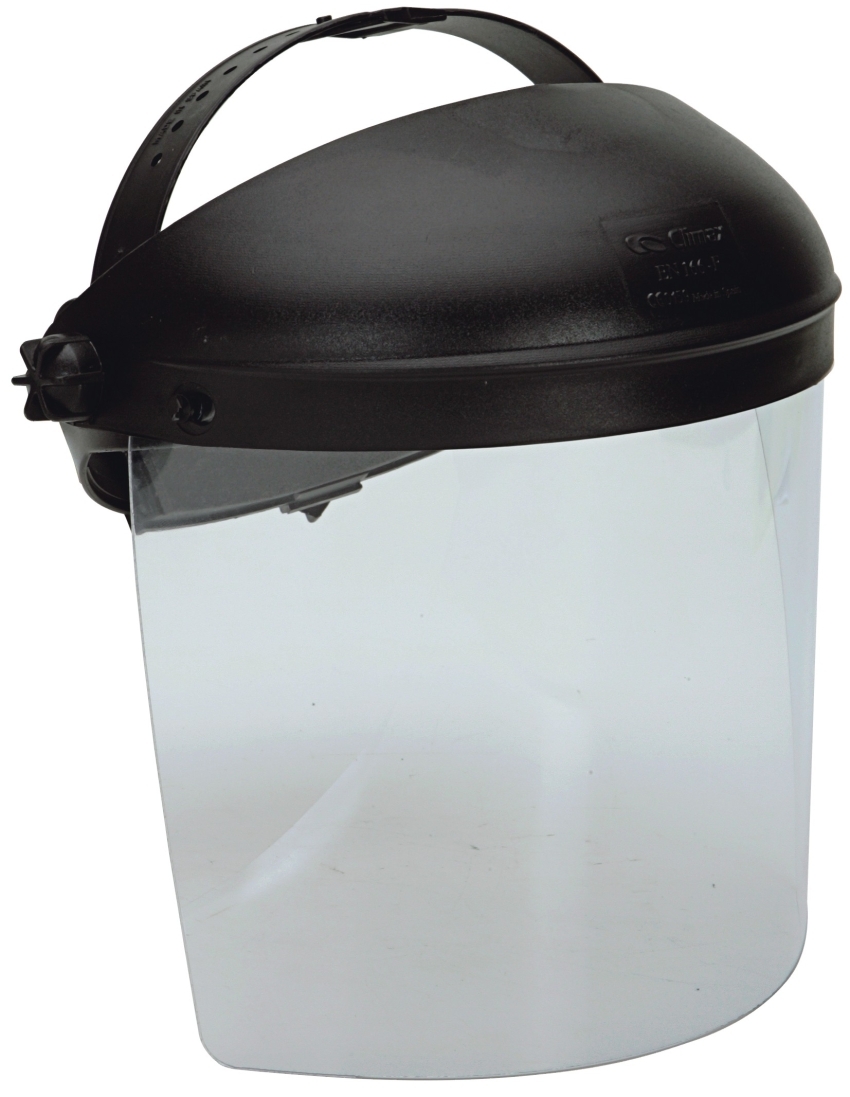

The Climax 424-RN/2 face shield has been designed to
provide effective protection against the risk of impact by
high-speed and Low-energy particles and is capable of
resisting the impact of projectiles with a speed up to
190m/s, such us, small flying debris such as wood, metal
and plastic chips, pieces of twigs and branches from
gardening machinery, etc. Due to the special design of
the face shield, any limitation on the angle of side vision
is minimised and the shield can be worn by virtually any
user. The optical class also allows extended use without
discomfort for the wearer.

Browguard
The semi-circular browguard is manufactured of blue
polyethylene and includes a narrow brim. The visor is
attached to the browguard by means of two centre pins and
two turn fasteners on the sides. The browguard also
contains a slot on each side in order to hold a bolt-nut
system used to attach the browguard and headgear.

Headgear
The headgear system is composed of a harness and
adjustment system, manufactured of injection-moulded
black polyamide. The harness comprises two parts, an
upper cross strap and a contour strap. The length of the
cross strap can be adjusted by means of the holes and
anchor stud system. The contour strap has a middle section
(which rests on the wearer’s forehead) and side arms that
join at the rear of the head by means of the adjustment
system. This system, which has a closing tube, guide and
wing nut, allows easy adjustment of the contour band
circumference by simply pressing and simultaneously
turning the wing nut. For greater comfort, the contour strap
has two self-sticking foams on the front of the strap where it
rests on the wearer’s forehead.

Visor
The visor is manufactured of 1.15-mm thick cellulose
acetate with an non-fogging treatment on both sides. The
visor comes with self-sticking film to protect it until the time
of use and measures 320 x 290 mm, with the width tapering
at the bottom of the visor.

Packaging
Individual units in plastic bag with information leaflet.
Case with 80 units: Sizes: 80x75x60 cm
Gross Weight: 23 Kg
CE Certification
Standards: EN 166, EN 167 and EN 168: 1996
Directive 89/686/CEE
Regulatory agency no. 0159
Certificate no. 11226201

Applications
Ideal for working under conditions with some risk of impact
by particles, e.g., when working with a lathe, milling
machine, sharpener or sander or with woodworking or
gardening machinery. The face shield provides effective
protection against the impact of small flying debris such as
wood, metal and plastic chips as well as pieces of twigs and
branches. The face shield pass successfully the Increased
robustness test (impact of a 43 g steel ball at 5.1 m/s) and
the high speed and Low energy impact test (impact of a 6
mm diameter and 0.86 g steel ball projected at 45 m/s).

Technical Data
· Resistance to UV radiation Dt < 3%
· Spherical refractive power (-0.03¸0.01)dp
· Astigmatic refractive power < 0.06 dp
· Prismatic refractive power Horiz: <0.25 cm/m
· Vert: <0.05 cm/m
· Optical class CLASS 1
· Mean transmission, visible (85.0±2).0%
· Light diffusion CONFORMS
· Increased mechanical resistance CONFORMS
· Low-energy, high-speed
· Impact resistance CONFORMS
· Resistance to high temperatures CONFORMS
· Flame resistance CONFORMS
· Fog resistance CONFORMS

HS Code: 65069910
COO: Spain
