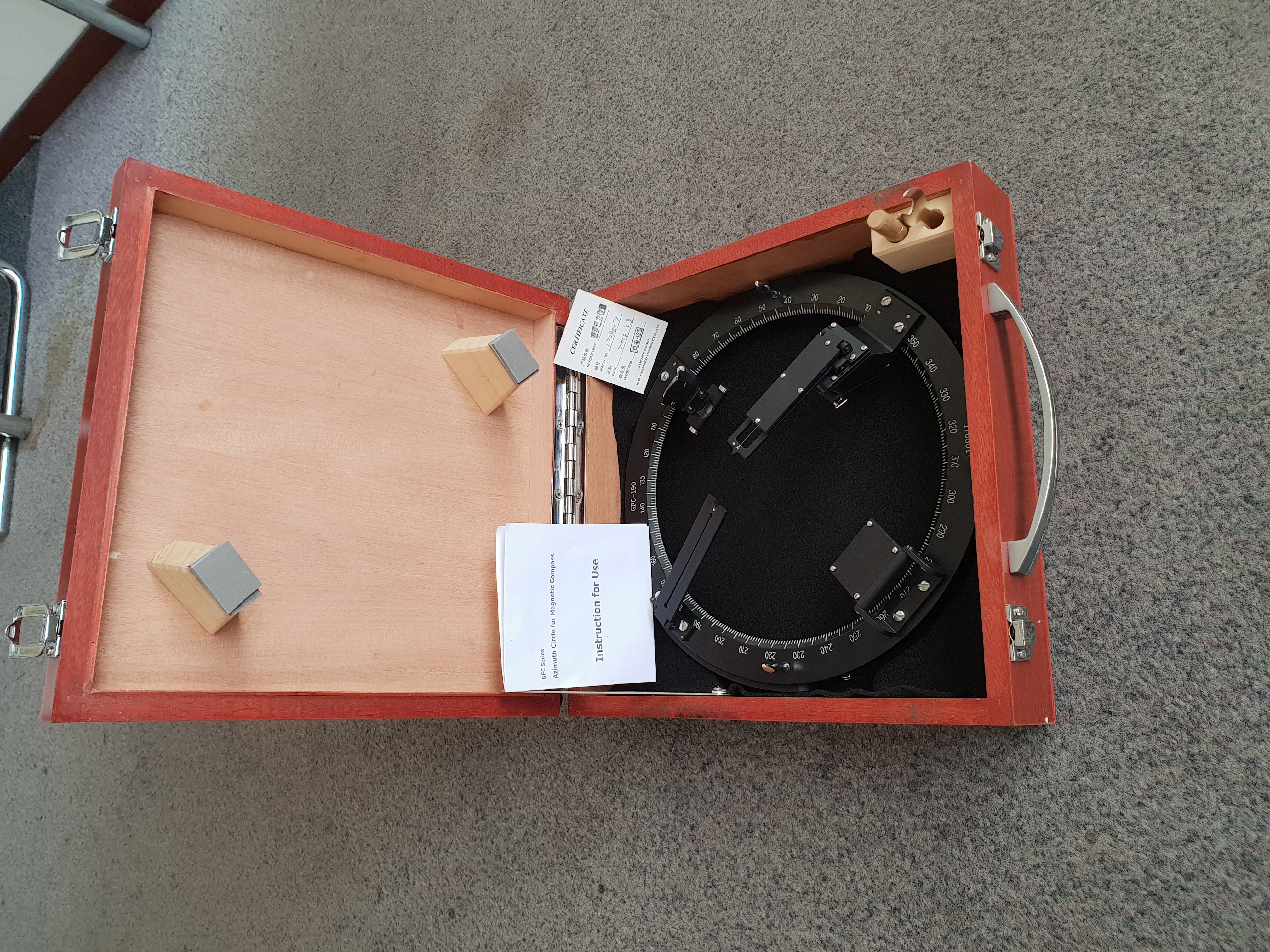

Azimuth circle ID 247mm in wooden box

Productcode: 230325
Our azimuth circle is made for marine A-level standard magnetic compass. It is designed and manufactured according to the marine industry standard GB/T335-2005

Made with brass, powder painted, packed in wooden box.

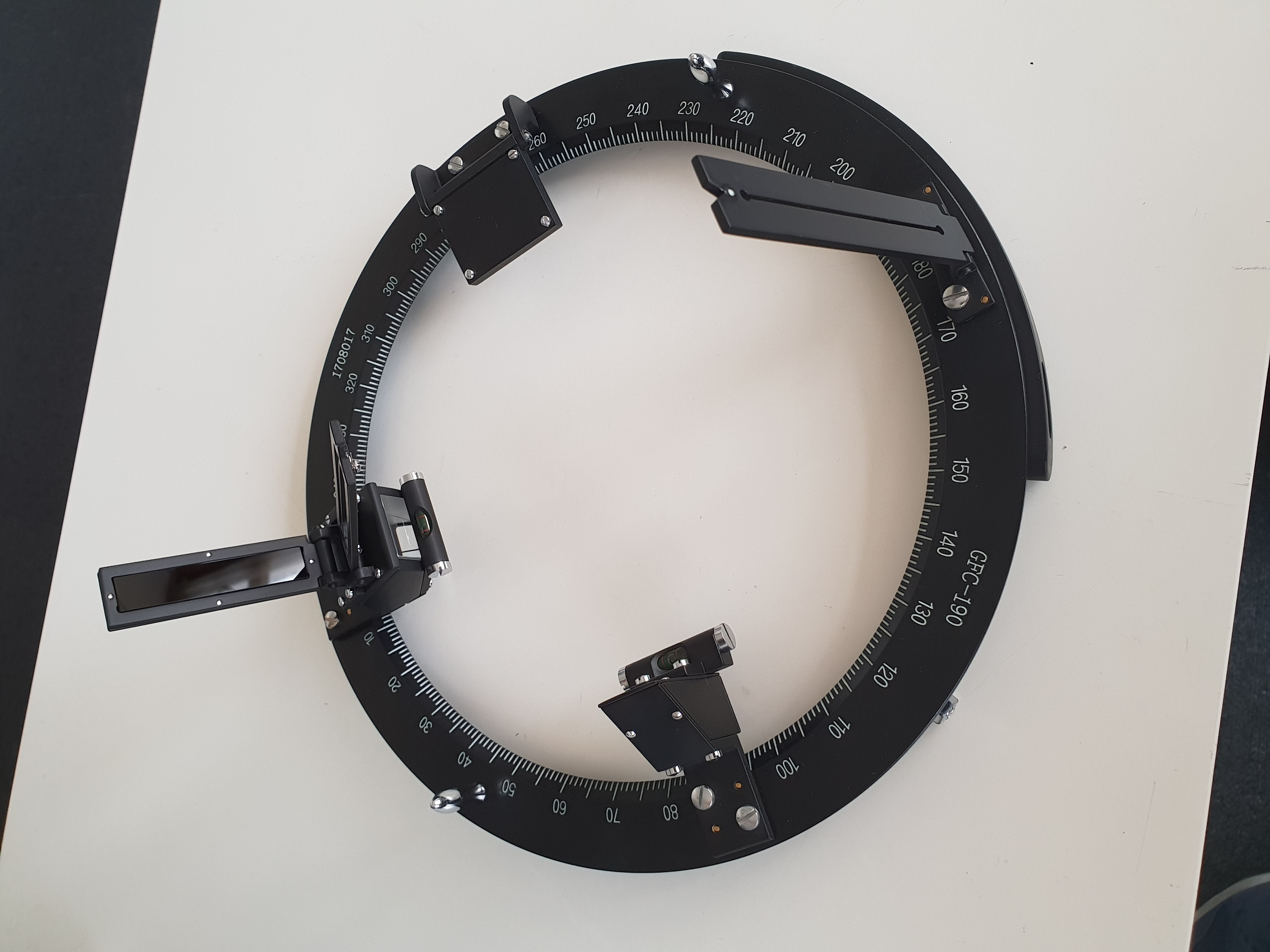

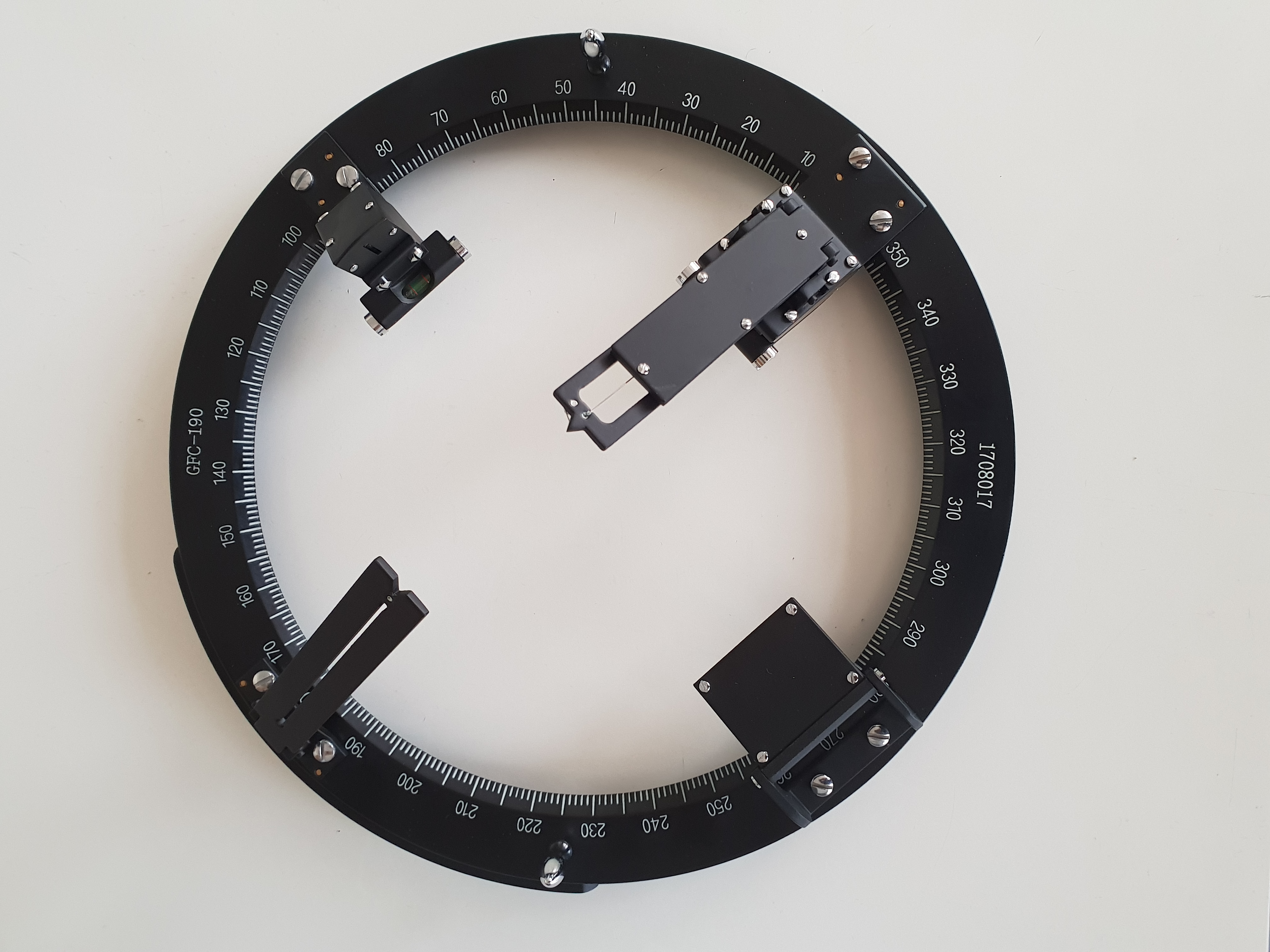

The azitmuth circle is mounted on the repeater compass. By means of a prism and reflection mirror, sunlight is projected in the form of a line on to the compass card through a slit, thus making it possible to observe the sun.

Inside diameter 247mm
Outside diameter 260mm
Weight 1.6kg
