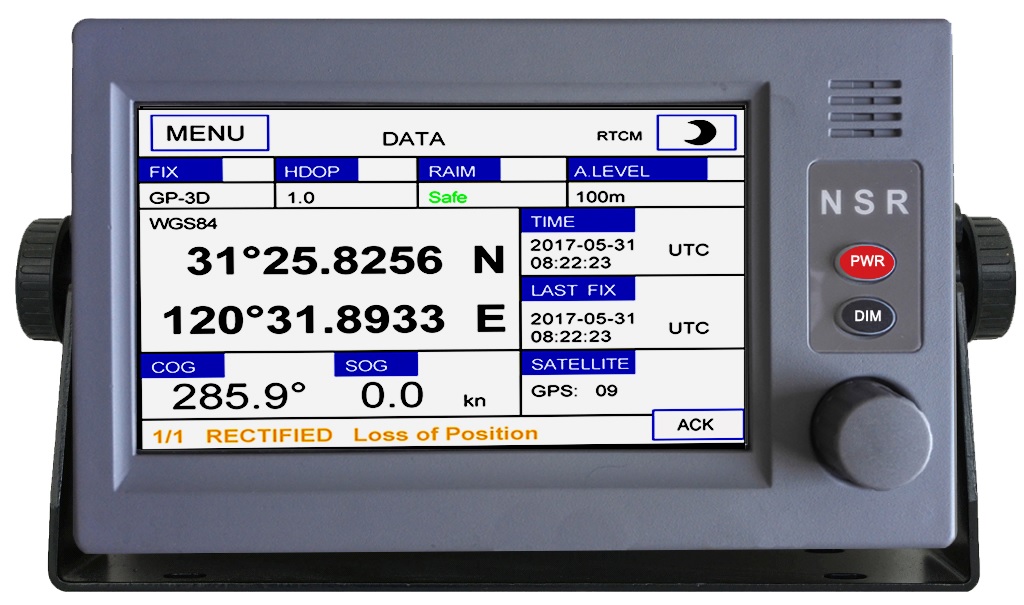

NSR - NGR3000 Marine GPS Navigator MED approved

Productcode: 29704050
IMO GPS Navigator wheelmark approved.

Model: NGR-3000

- Comprehensive navigation data displays.
- Storage for up to 999 waypoints and 30 routes.
- 7 inch, color LCD, touch screen operation with adjustable contrast and brilliance.
- Dedicate port for INS connection.
- 2 GPS data outputs.
- A DGPS beacon receiver (external) may be connected to the NGR-3000 to add DGPS function.
- Meets the requirements of relative IMO and IEC regulation & standards, including IMO MSC112 (73), IEC61108-1, etc.

Specifications:

GPS RECEIVER
- Receiving System: 50 channels parallel (GPS)
- Rx Frequency: 1575.42 MHz
- Rx Code: C/A code
- Position Accuracy: Approx. 10m (GPS), 95% of the time,
horizontal dilution of position (HDOP) = 4
- Tracking Velocity: 999 kts
- Position-fixing Time: Warm start: 15 seconds, Cold start: 120 seconds
- Position Update Interval: 1 second

DISPLAY SECTION
- Display: 7 inch, color LCD, touch screen operation
- Fix Mode : GPS
- Alerts: Lost of Position, HDOP?4, DGPS lost

INPUT/OUTPUT DATA
- Output Data: RS422, totally 2 ports,
Baud Rate 4800/9600/19200 bps
- Sentences: GNS, GBS, GGA, , RMC, VTG, ZDA, DTM
- INS connection: INS IN/INS OUT, RS422
- Input Data: DGPS RTCM SC-104

POWER SUPPLY 12-24 VDC, 0.25-0.50 A
ENVIRONMENT CONDITION
- Ambient Temperature: Antenna Unit: -25°C to +70°C
Main Unit: -15°C to +55°C
- Relative Humidity: 95% at 40°C
- Water Proofing: Antenna Unit: IEC60529 IPX6
Main Unit: IEC60529 IP22

OTHERS
- Size: 145(H) x 264(W) x 80(D) mm
- Weight: abt 2 kg (main unit)

Comprising:
- Display unit 7" Touchscreen 1
- GPS antenna w/20mtr cable 1
- Accessories 1
- Manual 1
