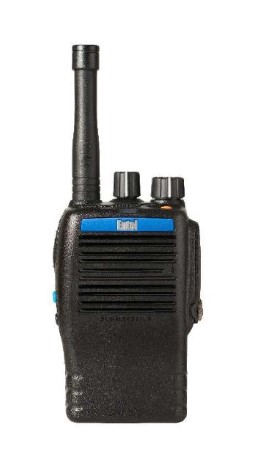

The ultra-durable DX-IS Series sets the benchmark for next-generation on-board radios. Standard features include both analogue and digital modes of operation, channel voice annunciation option, high visibility OLED display, high torque ergonomic controls and industry-leading IP68 2m 4 hours submersible rating, to provide 100% reliability and usability even in the most extreme conditions.

As standard the DX-IS Series portable is supplied with:

CNB450E-IS - 7.6V, 2200mAh rechargeable Lithium-Ion battery pack
Drop-in charger
Spring loaded belt clip
High efficiency antenna
User manual

Intrinsically Safe Certified to UL913 by SGS:
ANSI/UL913 5th Ed
Class I, II, III, Division 1, Groups C-G, T3
Class I, Division 2, Groups A-D

General
Frequency Range 450 - 470MHz
Channels / Zones 16 / 1
Channel Spacing Analogue / Digital 12.5 & 25 KHz / 12.5 KHz
Vocoder AMBE+2
Operating Voltage 7.6V
Battery CNB450E-IS 2200mAh Li-Ion
Weight (with battery) 289g – with CNB450E-IS
Overall Dimensions (HxWxD) 97mm x 59.5mm x 37mm (with CNB450E-IS)
Frequency Stability 1.5ppm
Antenna Impedance 50 ohms
Operating Temperature -20° to +55°C
Dust and Liquid Intrusion IP68 (2 meters depth for 4 hours)
Drop Test MIL-STD 810 C/D/E/F/G
Packing Test MIL-STD 810 C/D/E/F/G
Vibration & Shock MIL-STD 810 C/D/E/F/G
Air Interface DMR ETSI TS 102 361
Transmitter
Power Output 4W (high) - 1W (low)
Modulation 7K60FXE/ 7K60FXD, 8K0F3E, 16K0F3E
Distortion 2% / 5% - Digital / Analogue
Unwanted Emissions 0.25uW / 1.0uW <1GHz / >1GHz
Adjacent Channel Power 60dB
Receiver
Digital Sensitivity Typically -121dBm (0.2uV) for 5% BER
Analogue Sensitivity Typically -121dBm (0.2uV) for 12dB Sinad
Rated Audio Output 2 Watts
Intermodulation -42dBm
Adjacent Channel Selectivity 60dB (Digital)
60/70 (Analogue 12.5/25KHz)
Spurious Response Rejection -37dBm
Spurious Radiations 2.0nW/20nW <1G Hz/>1GHz

KEY FEATURES

16 Channels
Channel voice annunciation
IP68 Submersible (2m, 4 hours)
MILSTD construction 810C/D/E/F/G
High capacity Li-Ion battery technology
Market leading duty cycle up to 22 hours (digital mode)
Exceptionally loud & best in class clarity of audio
Programmable buttons
Gold plated accessory connector
Salt Water anti-corrosion chassis coating
Locking accessory connector
Accessory audio tailoring optimises audio for each accessory
Drag and drop end user programmer, no need to visit site
