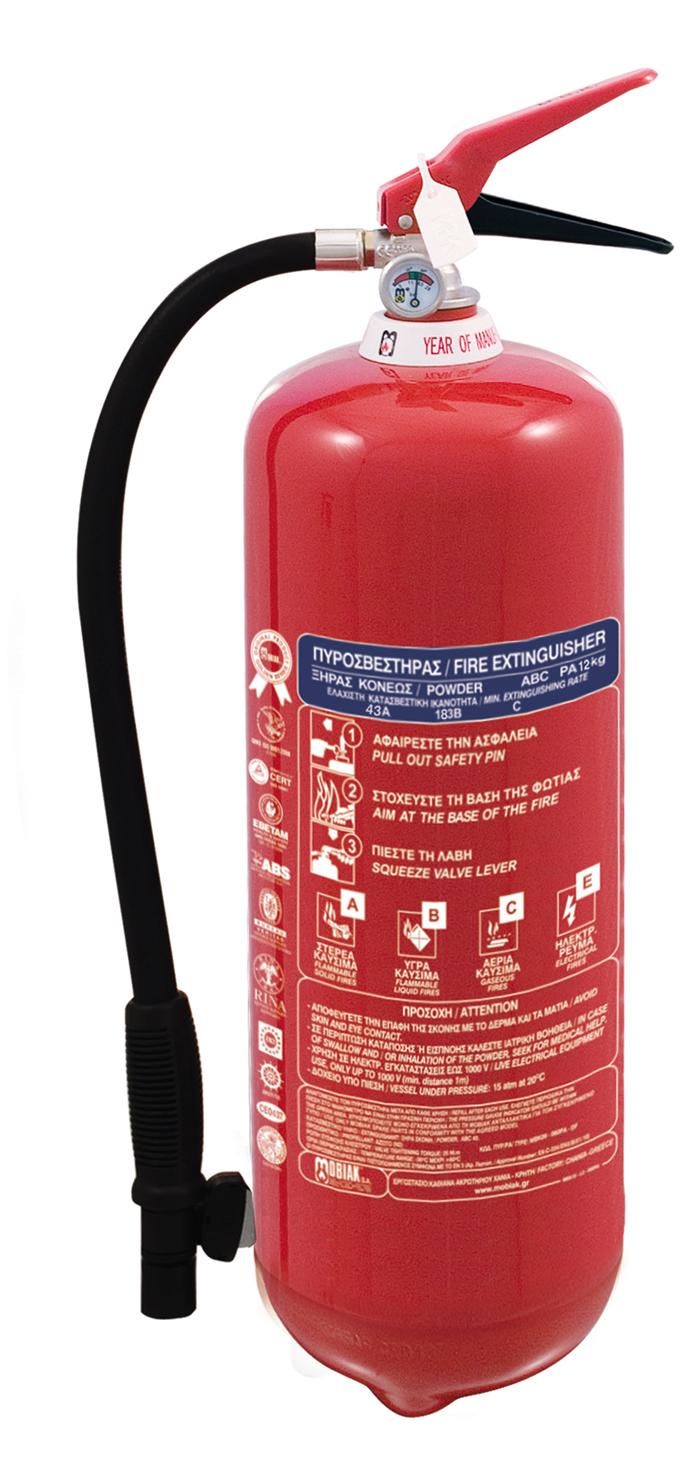

Extinguisher Powder 12 kg MED constant pressure

Productcode: 321.12.05
Extinguisher Powder 12 kg MED constant pressure
ABC 40% with one seam vessel and pressure Gauge Safety Release Valve.

Capacity 12Kg
Fire performance 55A 233B C
Extinguishing agent ABC 40% Dry Powder
Operating temperature -30°C to 60°C
Average discharge time 33.57sec
Test pressure 26bar
Max allowable pressure 18.00bar
Volume of equipment 13.60Lt
Cylinder material St12
Cylinder height 535 ± 5 mm
Cylinder diameter 190 ± 1.5 mm
Cylinder neck thread 30 x 1.5 mm
Valve material HPb59-1
Safety valve 19-26 bar
Paint Finish RAL 3000
Approx. Gross Weight 17.80Kg
Approx. Dimensions 635 x 190 mm
