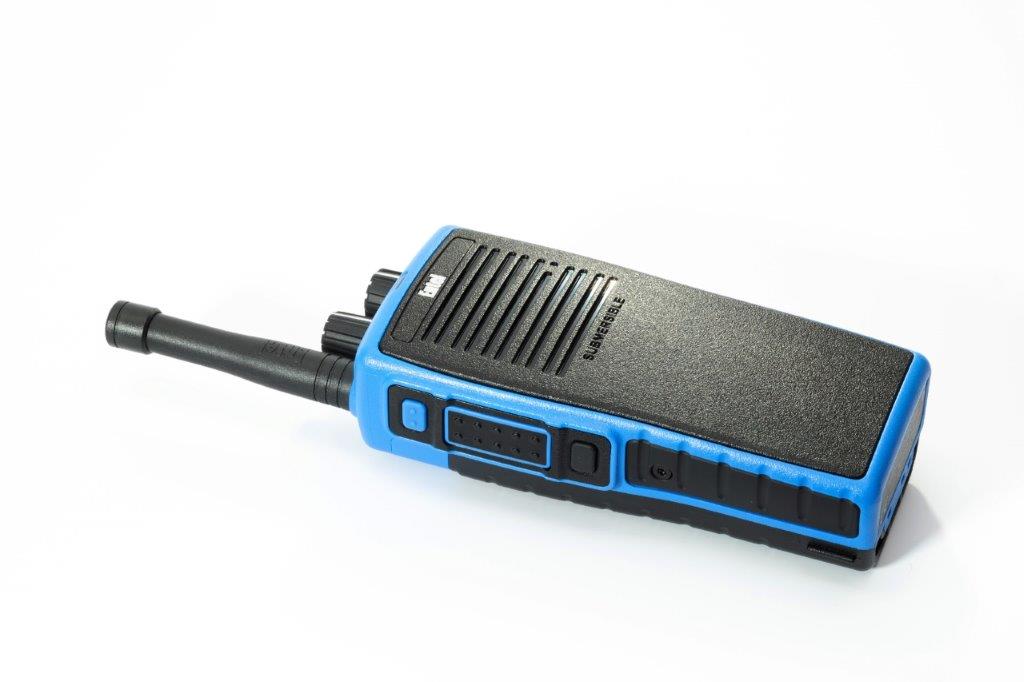

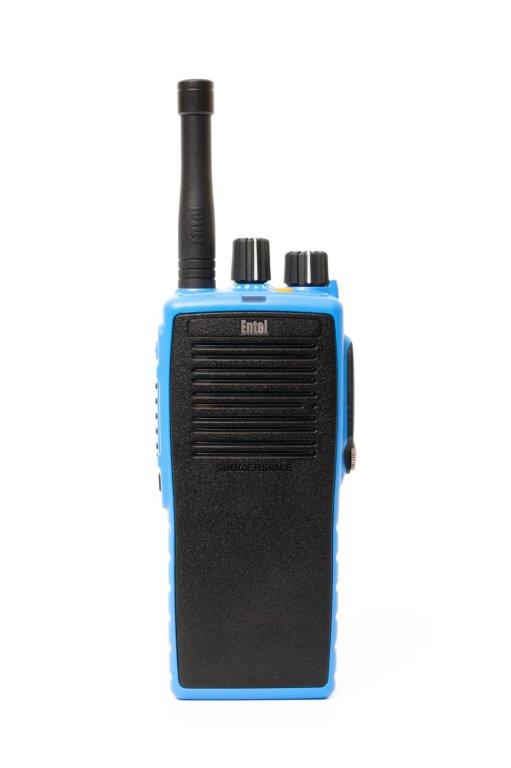

The ultra durable DTEx Series sets the benchmark for next-generation on-board radios. Standard features include both analogue and digital modes of operation, channel voice annunciation option, high torque ergonomic controls designed for gloved-hand use, and industry-leading IP68 2m 4 hours submersible rating, to provide 100% reliability and usability even in the most extreme conditions.

As standard the DT Series portable is supplied with:

Li-Ion battery pack
Drop in charger
Belt Clip
High Efficiency Antenna
Quick Start User Guide

ATEX IIB T4 Approved - The DT882M ATEX certified portables meet IIB T4 - the most stringent ATEX ratings as per EU directive 94/9/EC.

General
Frequency Range UHF 450-470MHz
Channel Spacing Analogue / Digital 12.5 & 25 KHz & 12.5KHz
Operating Voltage 7.4v
Weight 435g
Overall Dimensions (HxWxD) 138mm x 60mm x 38mm
Programmable Buttons 3
Channels up to 16
Battery CNB950EV2 1800mAh Lithium-Ion
Battery Endurance (5/5/90) Analogue mode 12 hours
Battery Endurance (5/5/90) Digital mode 17 hours
Transmitter
Output Power UHF ATEX IIB 2 Watts
Modulation Limiting ±2.5kHz @ 12.5kHz
±5.0kHz @ 25kHz
Conducted / Radiated Spurious Emissions Better than -36dBm
Adjacent Channel Power Better than 60dB
Audio Distortion (typical) 3%
Receiver
Sensitivity (Typical) Analogue
-121dBm (0.2uV) for 12dB SINAD
Digital
-121dBm (0.2uV) for 5% BER
Intermodulation response rejection (ETSI) > 70dB
Adjacent Channel Selectivity (ETSI) > 70dB(12.5KHz) 60dB(25KHz)
Spurious Response Rejection (ETSI) > 70dB
Audio Output Power 1 Watts
Audio Distortion (typical) 3%
Conducted Spurious Emission (ETSI) > - 57dBm
Environmental
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test MIL-STD810 C/D/E/F/G
Water Ingress IP68 2 metres, 4 hours submersible
Ex Protection ATEX II 2G Ex ib IIB T4 Gb

KEY FEATURES

16 Channels
IP68 Submersible (2m, 4 hours)
MILSTD construction 810C/D/E/F/G
High capacity Li-Ion battery
Exceptionally loud & best clarify audio - in class
Programmable buttons
Gold plated accessory connector
Locking accessory connector
Accessory audio tailoring optimises audio for each accessory
Drag and drop end user programmer, no need to visit site
